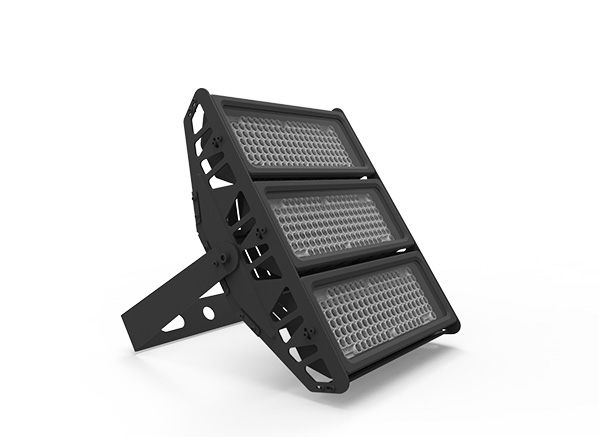

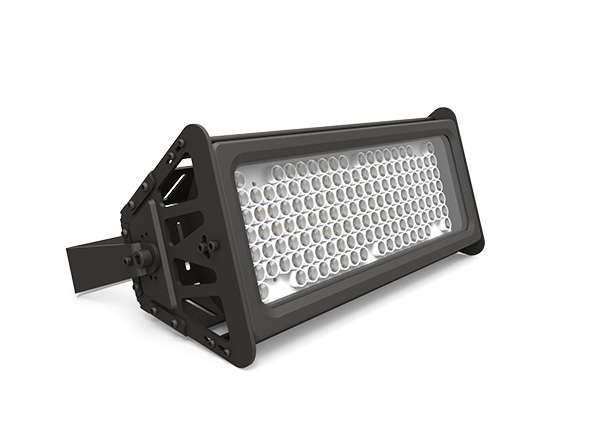

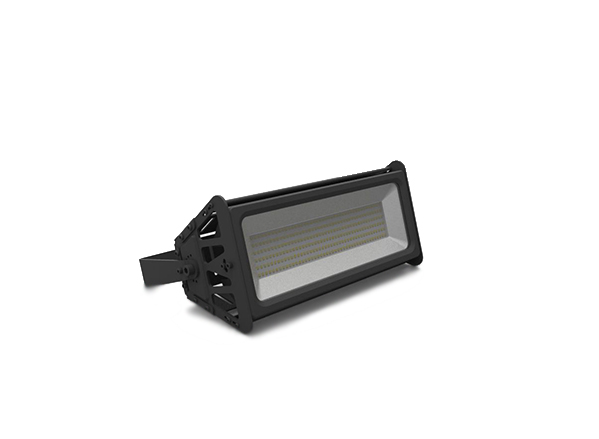

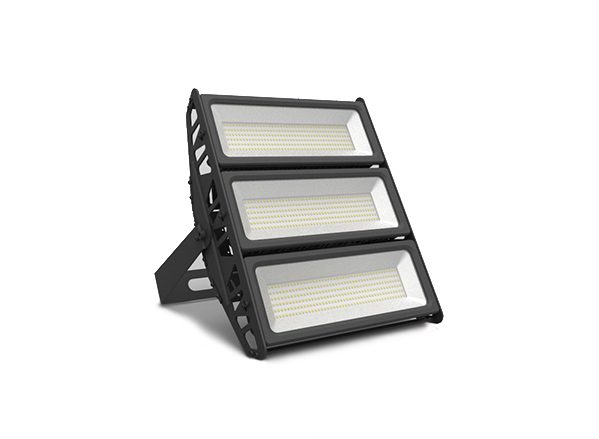

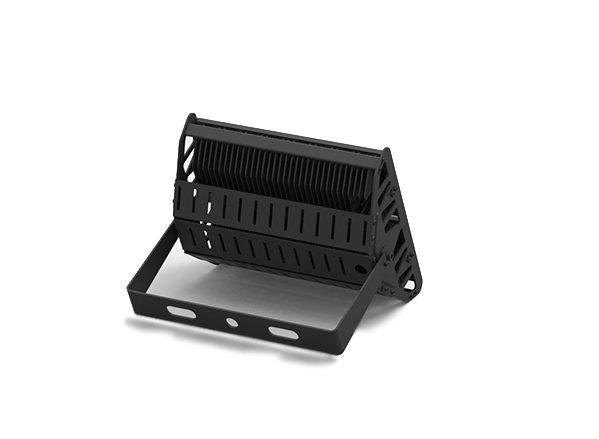

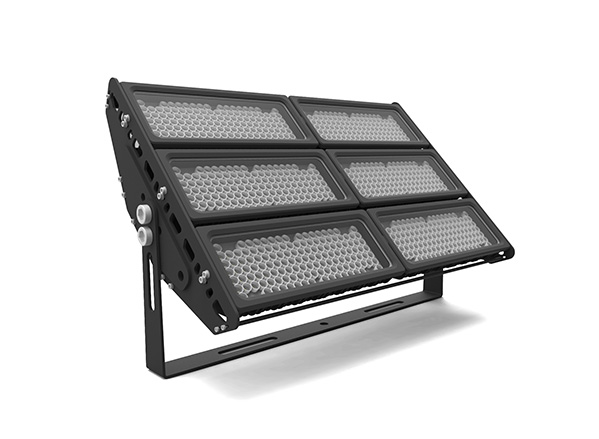

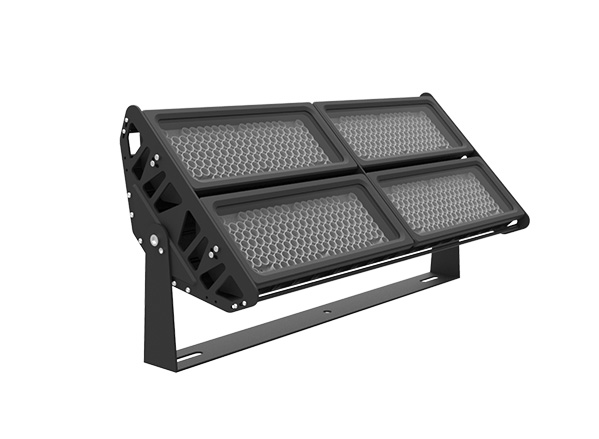

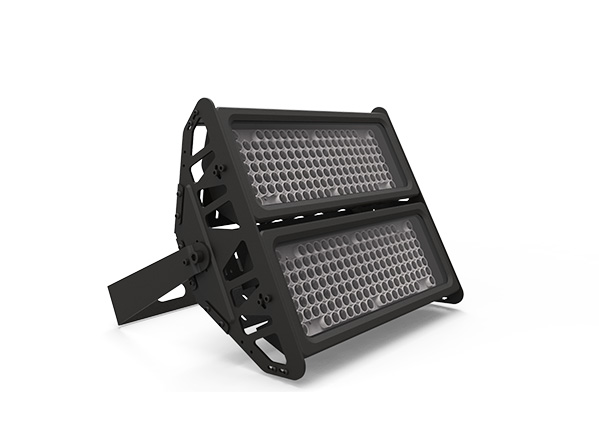

Rotatable Modular Floodlight

Features

Multiple optical lenses

±30° rotatable module angle for better light distribution

Customized laser and label branding

IP66, IK08

CE, RoHS

Excellent appearance design

Mean well driver, 5 years warranty

Good extensibility, compatible with microwave sensor and SPD

SKD/CKD solution available

Reliable heat dissipation

General specification

Input Voltage Range	90-305Vac
Input Frequency	45-66 Hz
Power Factor	>0.95
CRI	>70
Beam Angle	With glass cover: 110° With optical lens : 30°/40°/50°/ 60°135°/ 85°135°/ 85°*150°
Color Temperature	4000K/5000K/6500K
Ingress Protection Rating	IP66/IK08
Operating Temperature Range	-40℃ to 50℃

Application

Specification

Model	Wattage	Luminous Flux		Weight(kg)
Model	Wattage	With reflector(T)	With lens(L)	Weight(kg)
NOL-FL080(TL)	80W	11,200lm	10,000lm	4.0
NOL-FL100(TL)	100W	13,500lm	12,500lm	4.0
NOL-FL150(TL)	150W	21,000lm	18,800lm	7.0
NOL-FL200(TL)	200W	27,000lm	25,000lm	7.0
NOL-FL240(TL)	240W	32,400lm	30,000lm	10
NOL-FL300(TL)	300W	40,500lm	37,500lm	10
NOL-FL320(TL)	320W	43,200lm	40,000lm	15
NOL-FL400(TL)	400W	54,000lm	50,000lm	15
NOL-FL600(TL)	600W	81,000lm	75,000lm	20

Above data is typical

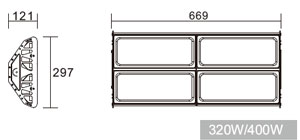

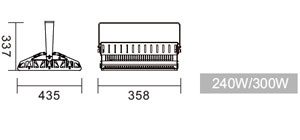

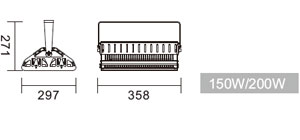

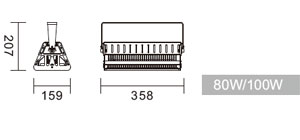

Dimension

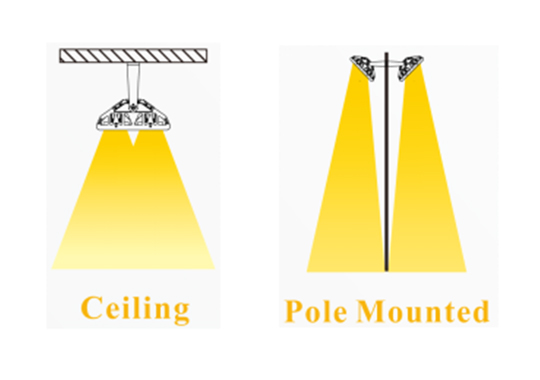

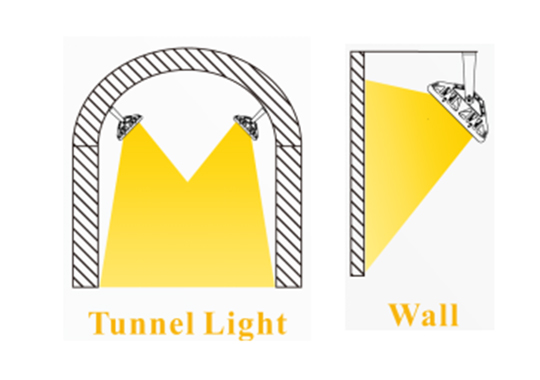

Installation way

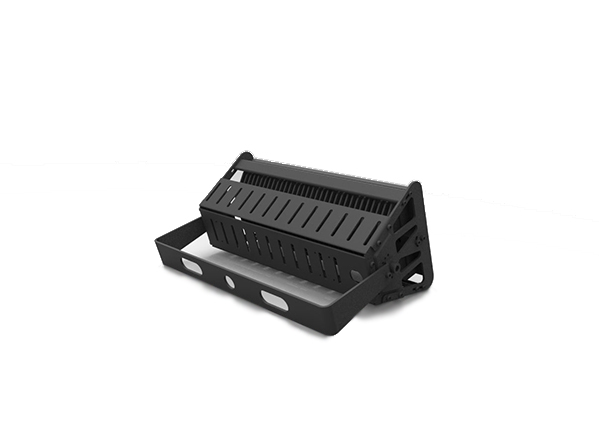

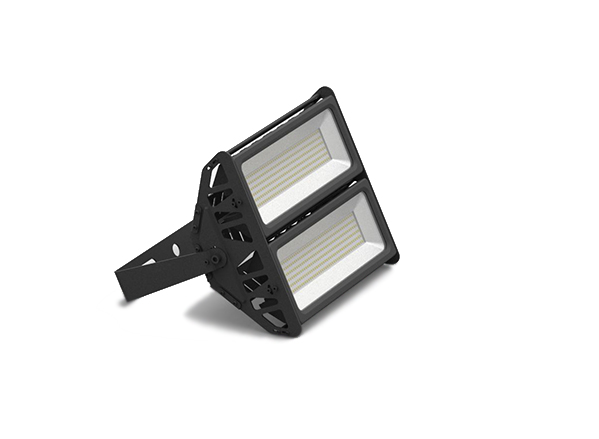

Adjustable LED Floodlight

Packing

System Watt(W)	Carton Size(mm)	G.W.(Kg)
80W	490405550/6Pcs	26.5
100W	490405550/6Pcs	26.5
150W	415760375/4Pcs	30
200W	415760375/4Pcs	30
240W	530420395/2Pcs	21.5
300W	530420395/2Pcs	21.5
320W	735395400/2Pcs	32
400W	735395400/2Pcs	32
