Features

Durable, shock and vibration proof; safe: environmental friendly with NO toxic mercury

UL/ CE listed driver

Optimized heat sink design to enhance thermal conductivity

Unique optical lens design for excellent efficacy and uniformity

Patented optical lens reach 95% light transmittance

IP 66 Waterproof

Universal mounting hardware design Tilting mechanism for fast adjustment on tilt angles from -10 to 10 degree in 5 degree step

Optional photocell control

RoHS and CE compliant

Designed to provide soft, anti-glare and effective ambient

Superior thermal management for optimal LED light output

General specification

Input Voltage Range	100-277Vac
Input Frequency	50/60Hz
Power Factor	>0.9
Total Harmonic Distortion	<20%
Surge Protection	10KV
Color Temperature	5000K, Other color temperatures are optional
Ingress Protection Rating	IP66
Operating Temperature Range	-40℃ to 50℃

Model Specification

Model Number	Power Consumption(W)	Luminous Flux(lm)	Module Number	Weight(KG)
TSL-1508-02	80	10,400	2	8
TSL-2510-02	100	13,000	2	8
TSL-2512-02	120	15,600	2	8
TSL-4015-02	150	19,500	4	10.8
TSL-4020-02	200	26,000	4	10.8
TSL-4024-02	240	31,200	6	13.2
TSL-4030-02	300	39,000	6	13.2
TSL-8040-02	400	52,000	8	15.2

Above data is typical

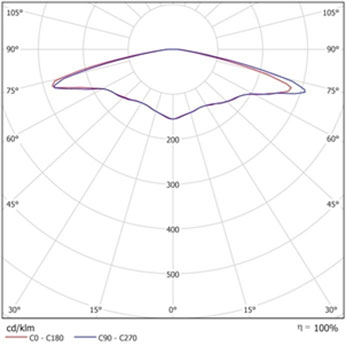

Optical lens

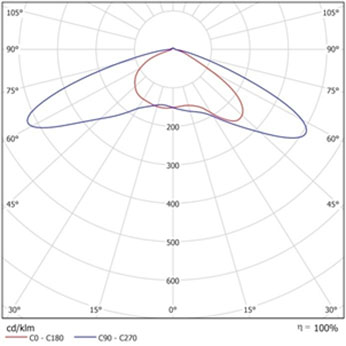

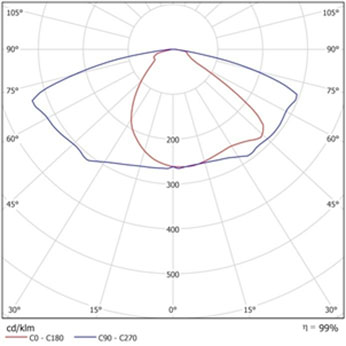

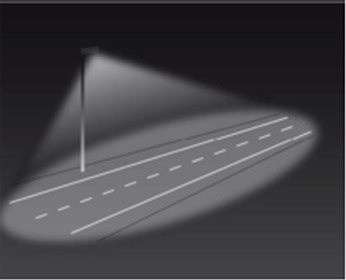

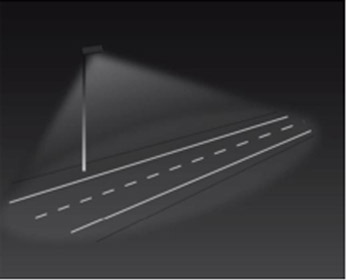

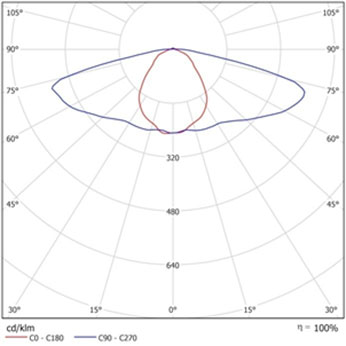

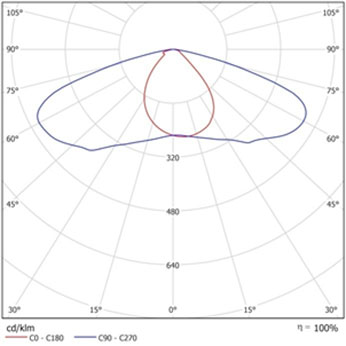

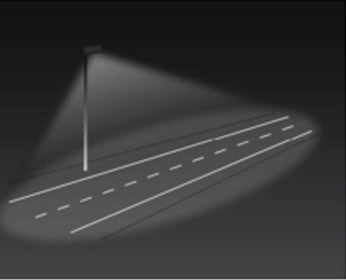

Multi-layer Optics for optimal energy saving: Multi-layer optic design guarantees light uniformity for today and in the future. The innovative optical design ensures road safety, unlikely but in the event of individual LED failure.

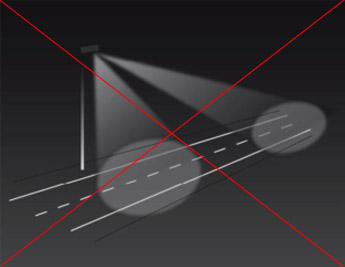

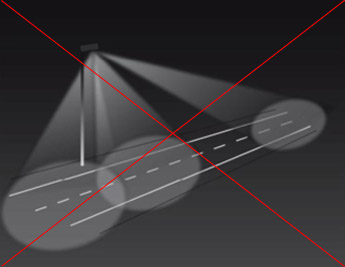

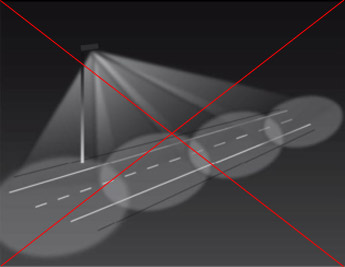

Multiple spot:

Mechanical

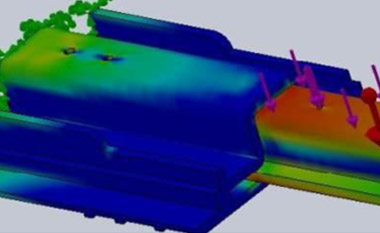

Full die-casting housing: IK 08 rating: Dios LED street light approved a solid die-cast IK 08 rated housing on the pole. The solid die-cast aluminum provides the excellent heat dissipation, extending the life of the components inside.

Full IP 66 ingress protection against water & dust (without glue): The modular construction and high-quality silicone gasket deliver reliable IP66 performance over the unit’s lifetime. No glue is used in the construction to prevent any breakdown of the water and dust proof seal. Full IP66 protection insures the best lighting performance and reduces the maintenance cycles to save time and money.

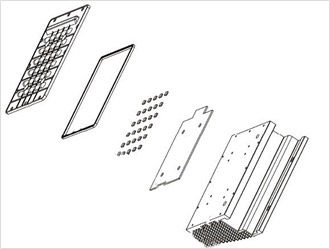

The housing shell under the circuit board was designed to enhance heat transfer and ensure perfect contact the LED board and housing to maximize heat dissipation.
The maximum thermal power to be dissipated by the housing is around 50W. A surface area of > 0.14 m2 ensures enough heat dissipation.

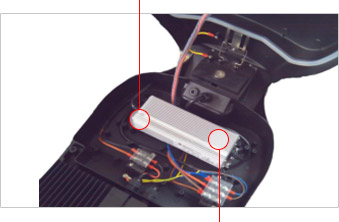

The power compartment is capable of being hinged open and the lid is automatically held open with a positive latching system. Ease of maintenance.

Integrated optical lens improve downward light output ratio to meet 5-7% higher efficiency than other competitors.

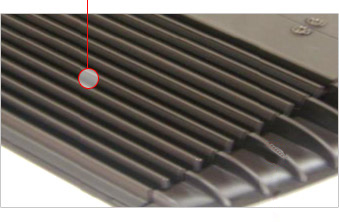

Additional ribs on the frame designed to make driver and frame directly touch, which helps to conduct driver’s heat to outside more quickly.

PCB Design and Interface:

A Metal Core Printed Circuit Board (MCPCB) is used to efficiently remove heat from the LED’s and transfer it to the housing to lower the LED’s operating temperature as much as possible. It provides with longer operating life and rigid surface for big boards, optimal thermal dissipation, ease of installation on cooling plate and housing, and reinforced electrical insulation through inside di-electric design.
MCPCB is mounted on the housing using a highly efficient Thermal Interface Material (TIM).TIM provides the robust thermal conductivity and elastic interfaces ensure air free bondage to any urfaces.
Dios LED Street light system delivers the true energy saving with the lowest W/ sf.

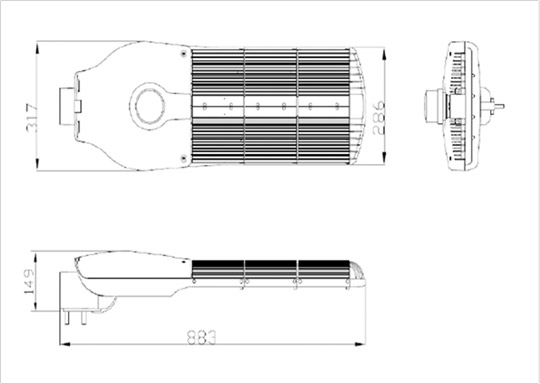

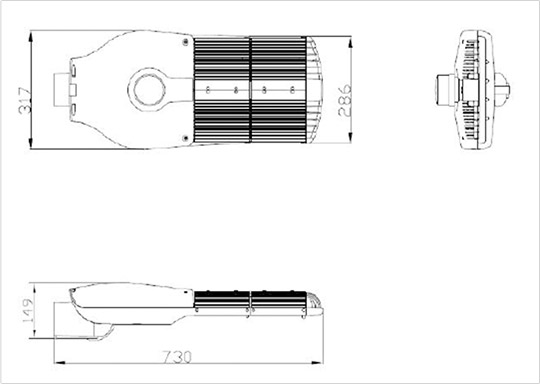

Dimension

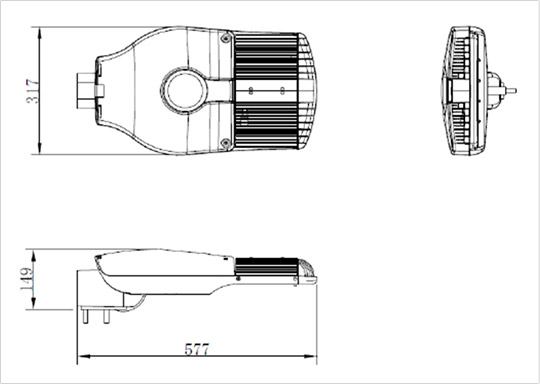

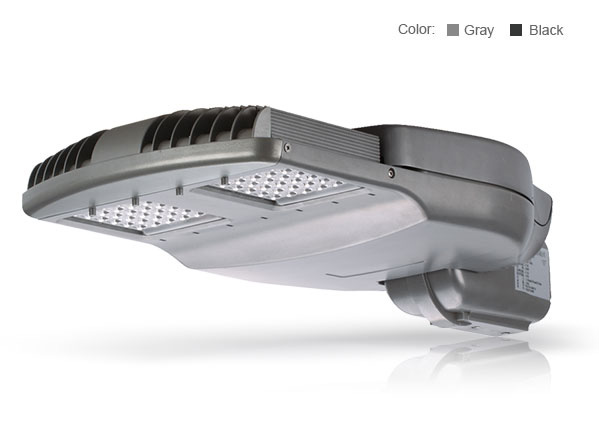

2 module
4 module

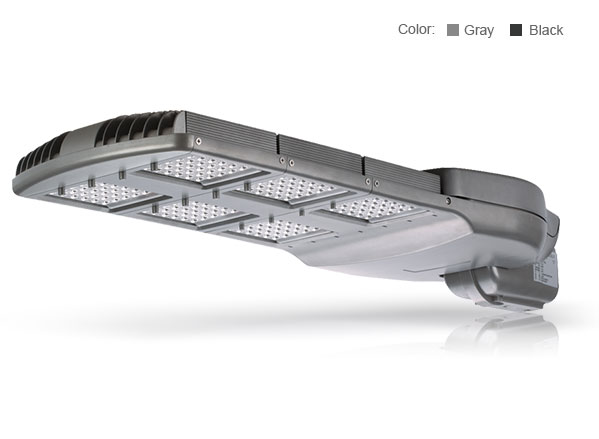

6 module

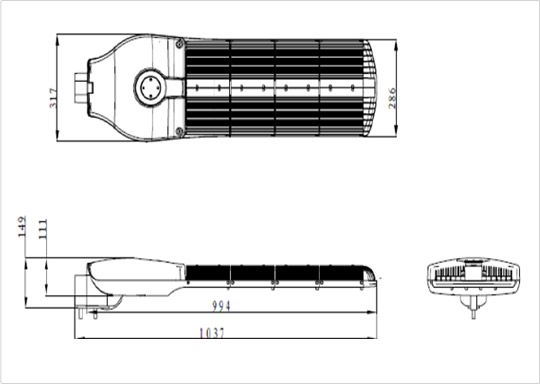

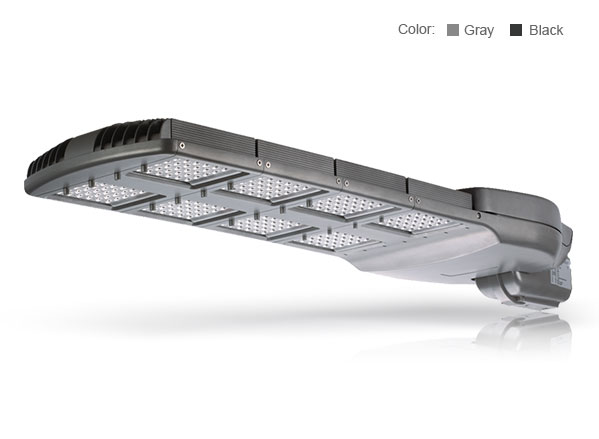

8 module

	2 module	4 module	6 module	8 module
Product Size (mm)	577317149	730317149	883317149	1037317149
Net Weight (kg)	8.0	10.8	13.2	15.2
Packing	1pcs/carton	1pcs/carton	1pcs/carton	1pcs/carton
Carton Size(mm)	693393240	848393240	1003393240	1158393240
Gross Weight(kg)	9.0	11.8	14.2	17.2

Application

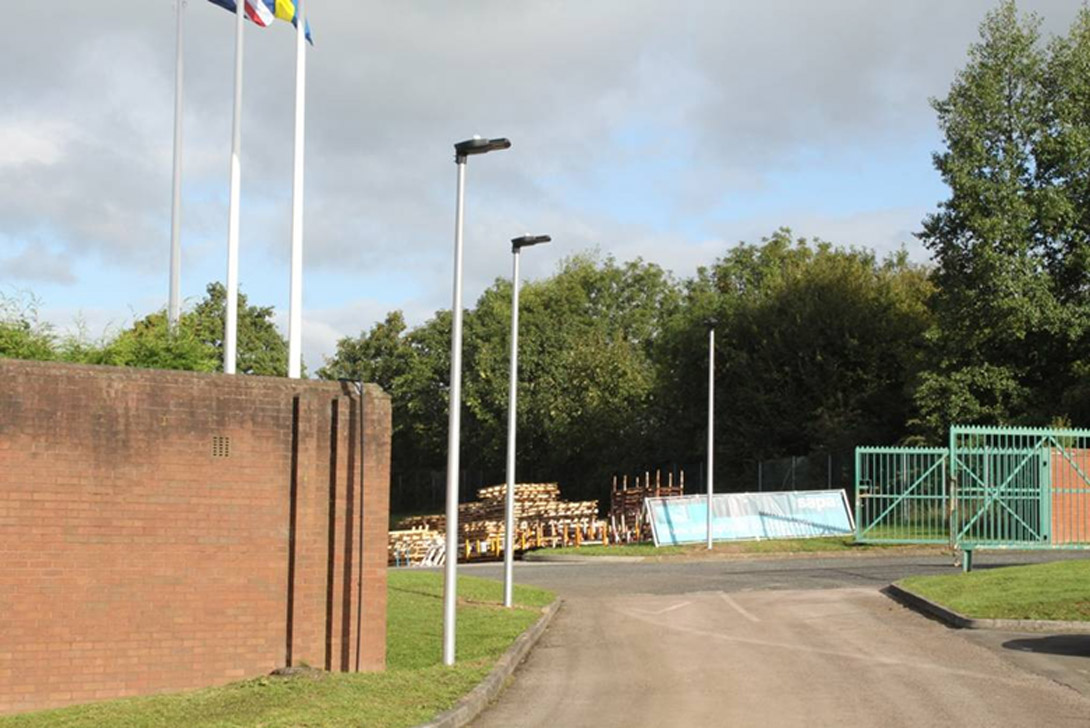

City Streets, Pavements, Roadways, Parking Lots, Squares, Schools, Parks, Yards, Commercial, Inhabited Area, Shopping Malls, and Any Places that need any security lighting levels.

Warranty

We provide 5 years warranty from date of original purchase from Tynrich for LED products.
